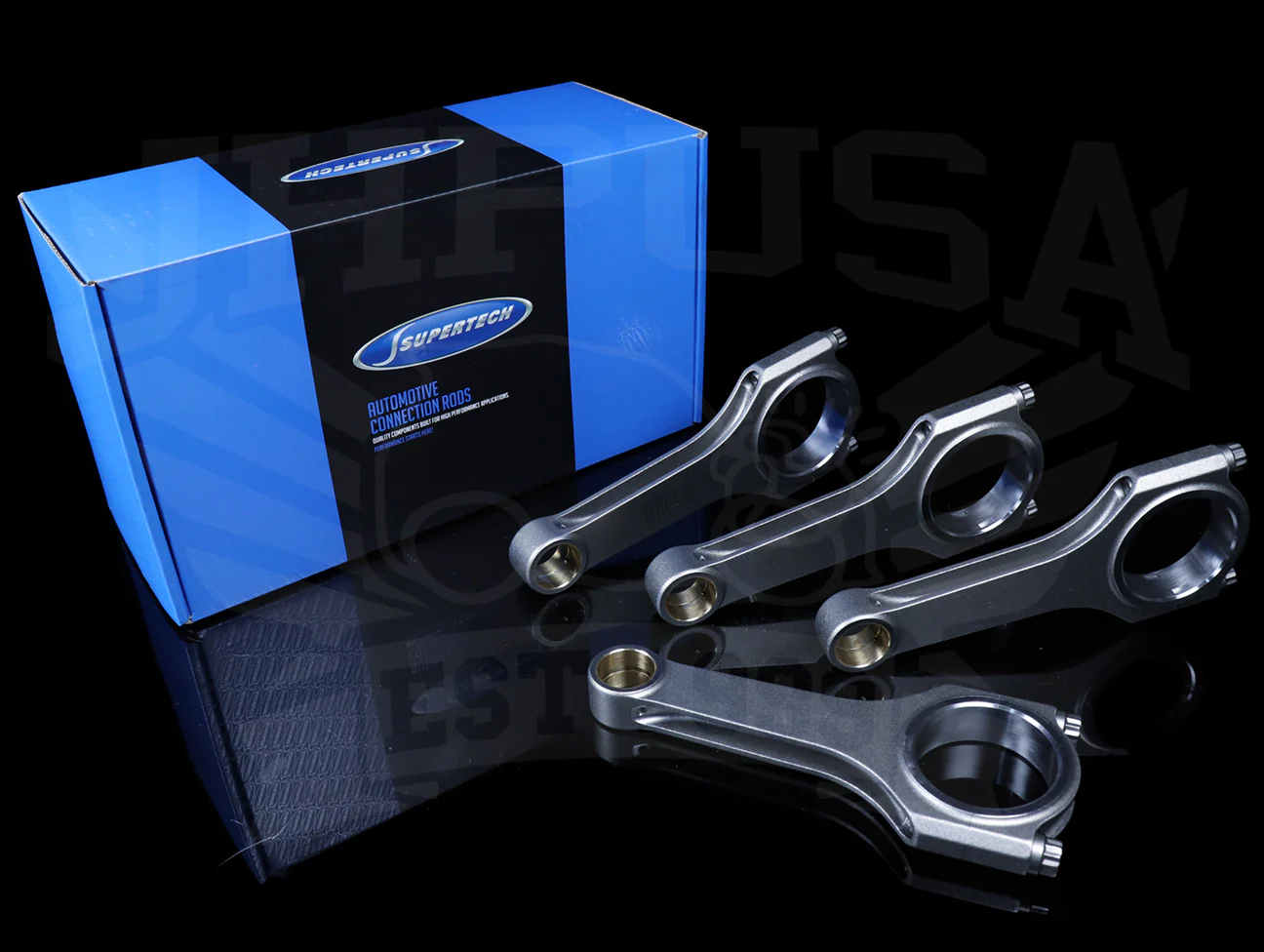

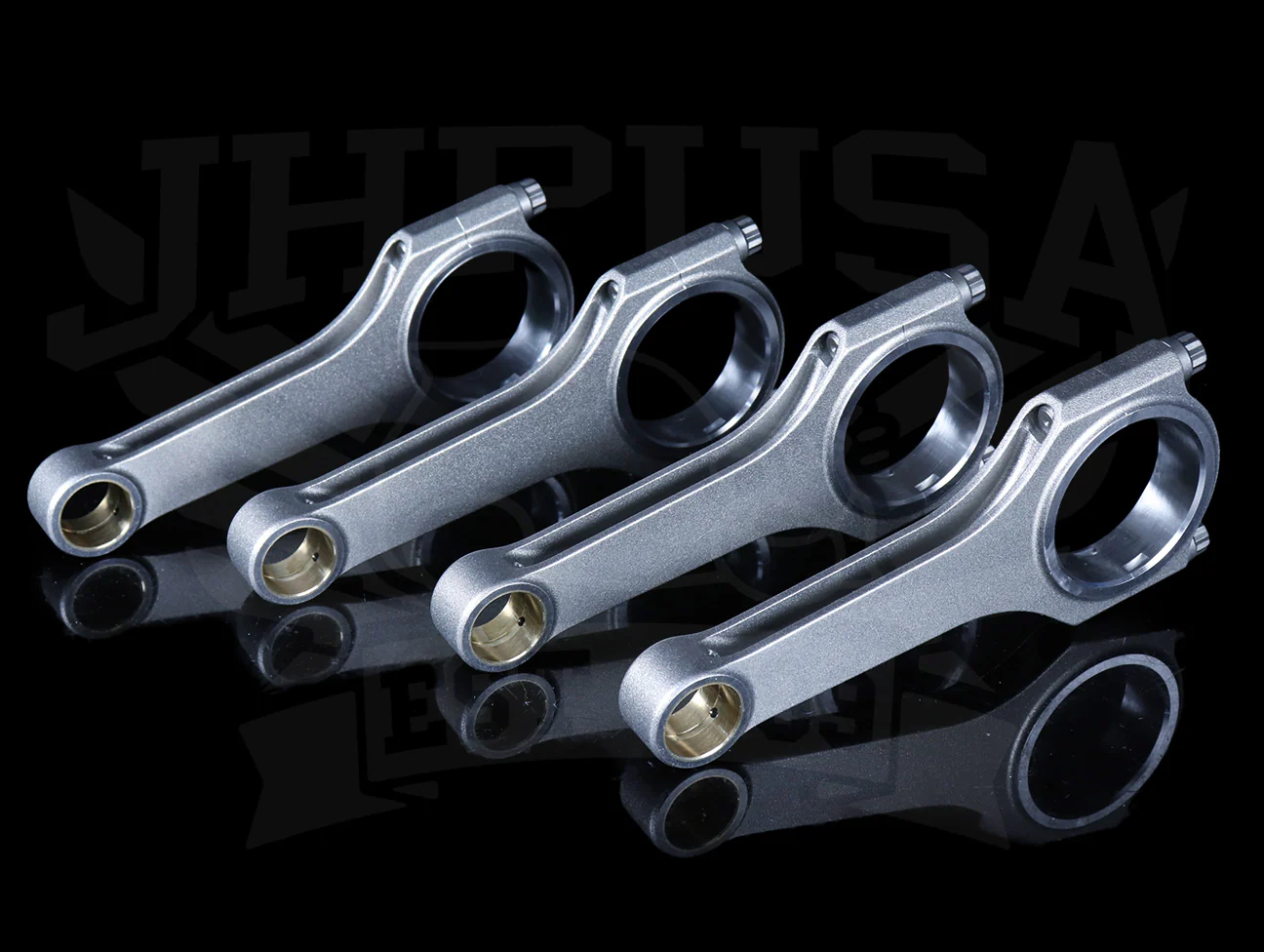

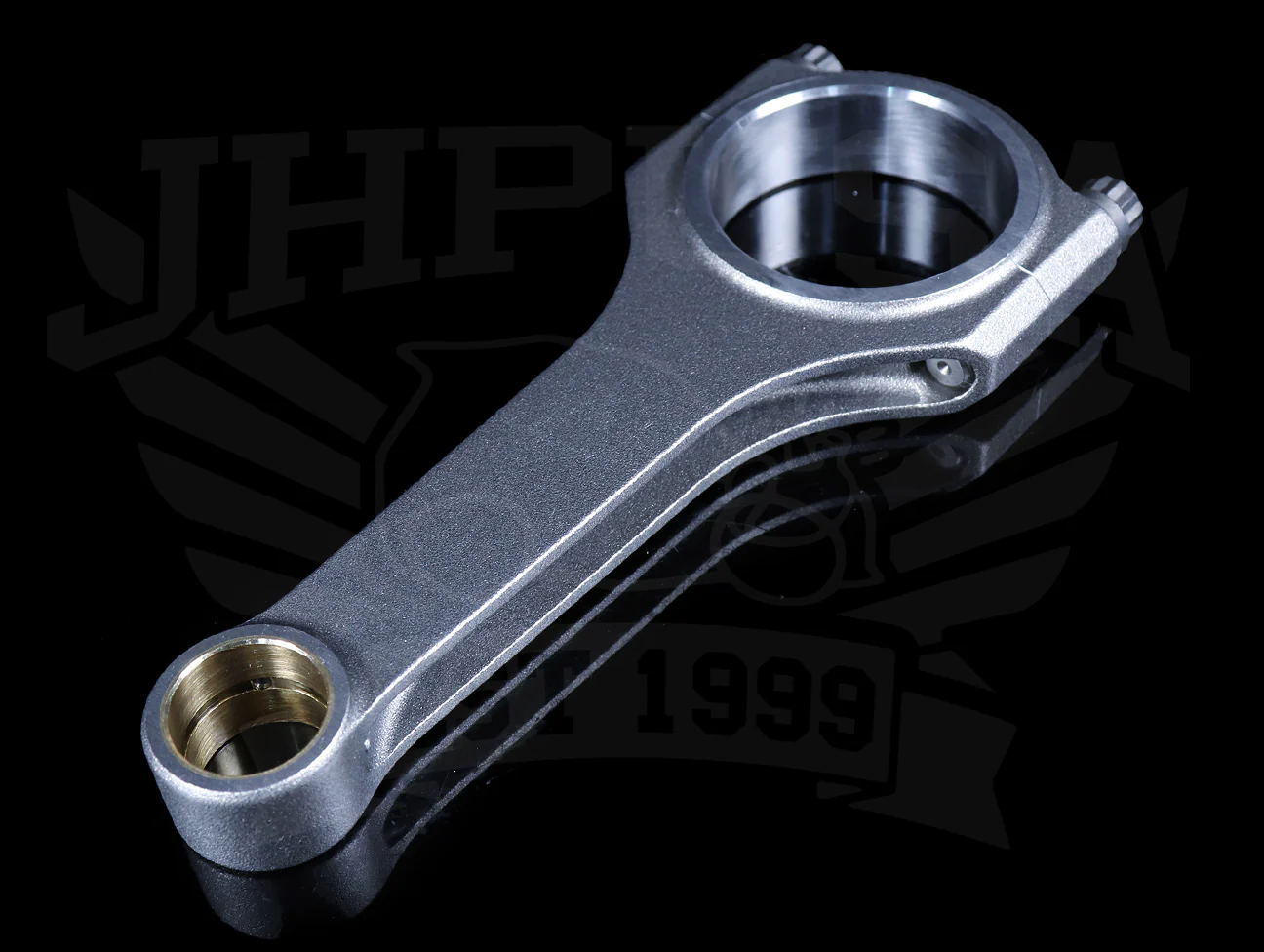

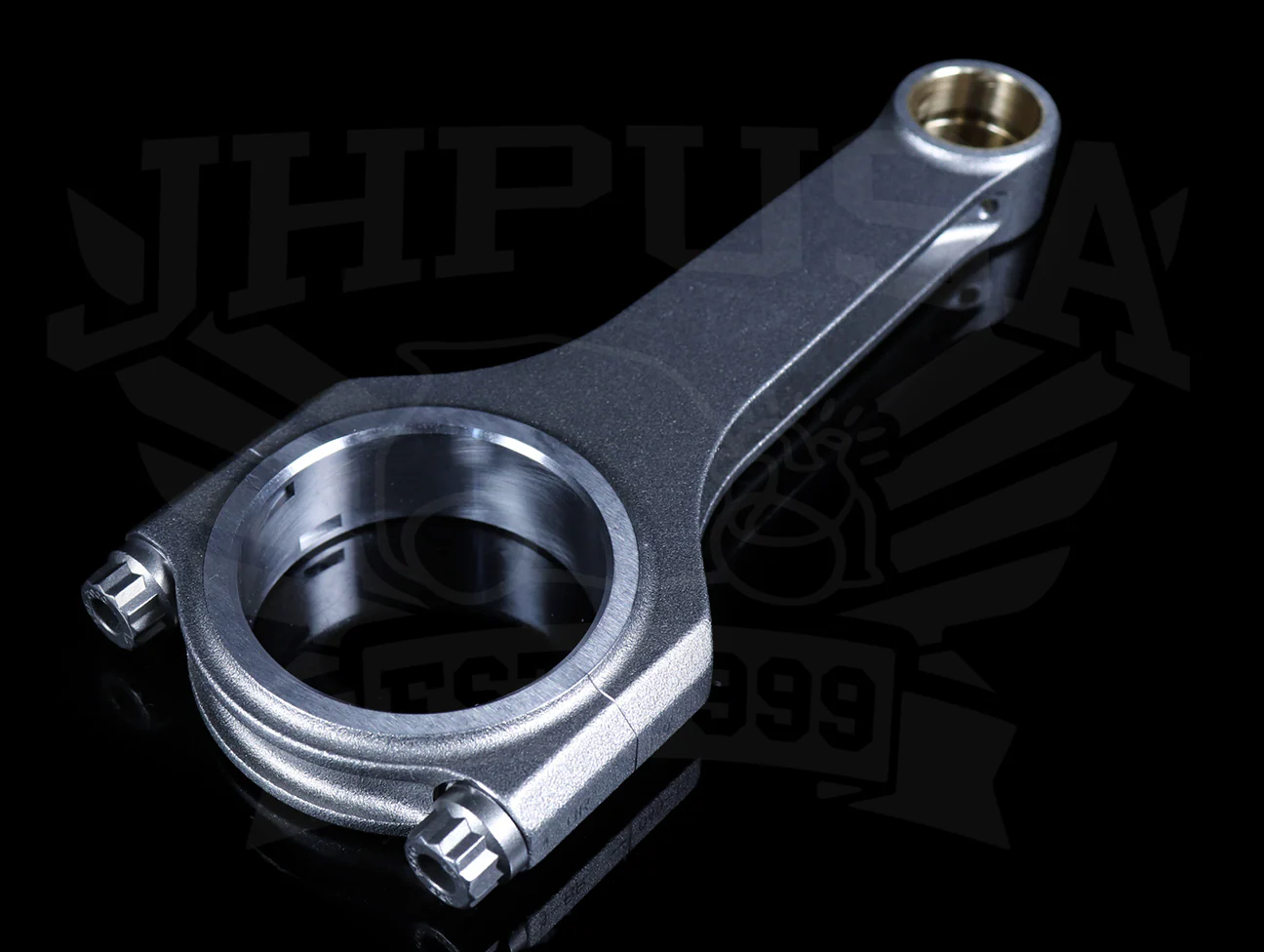

Supertech Forged Connecting Rods - Nissan KA24E/KA24DE
Supretech newly developed rods are manufactured from a high tensile strength 4340 alloy, offering excellent wear and fatigue resistance in optimal conditions. Supertech rods feature an H-beam design and come with ARP 2000 bolts capable of achieving a clamp load of 220,000 psi. All rods are design in house, using the latest cad and FEA software to ensure the highest quality rods on the market.
Features
- For Nissan K2A24E & KA24DE engines
- Forged Connecting Rod
- 4340 alloy
- H beam

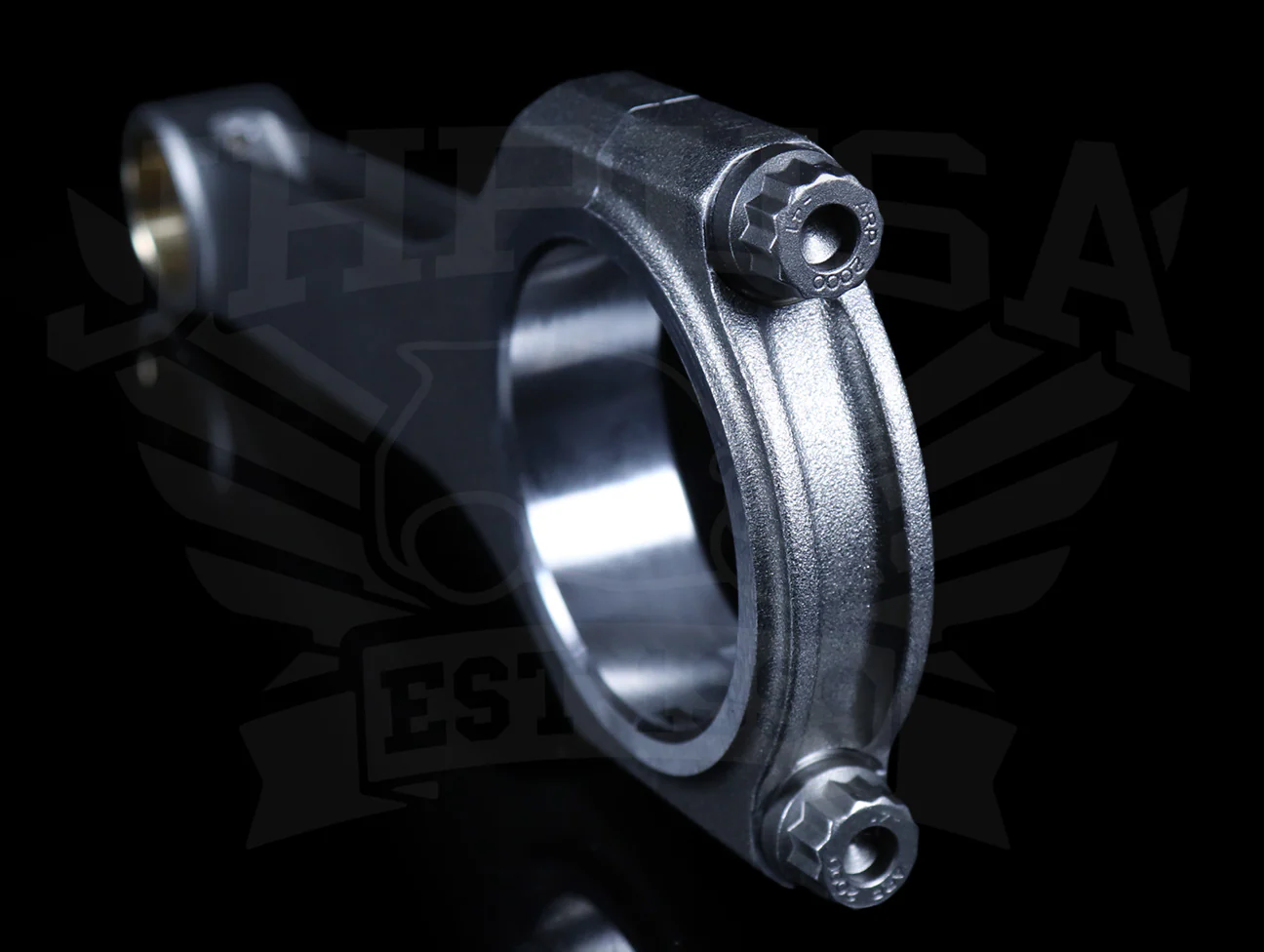

- ARP 2000 bolts
- Bronze Wrist Pin Bushings
- Fatter, H-Beam Design Without Drastic Weight Increase
- Dual-Pin Oil Passages For Increased Lubrication And Strength
Rod Specs:
- C-C Length 165mm (5.906")
- BE bore: 53.0mm
- BE width: 24.7mm
- PE bore: 21mm full float
- PE width: 25.4mm straight
- 400hp rating
Sold as a full set (4 rods)
Photos used for illustration purposes. Actual product model may vary.
