SpeedFactory Standard Dual Backdoor Intercooler (3" Inlet/Outlet) - Honda / Acura

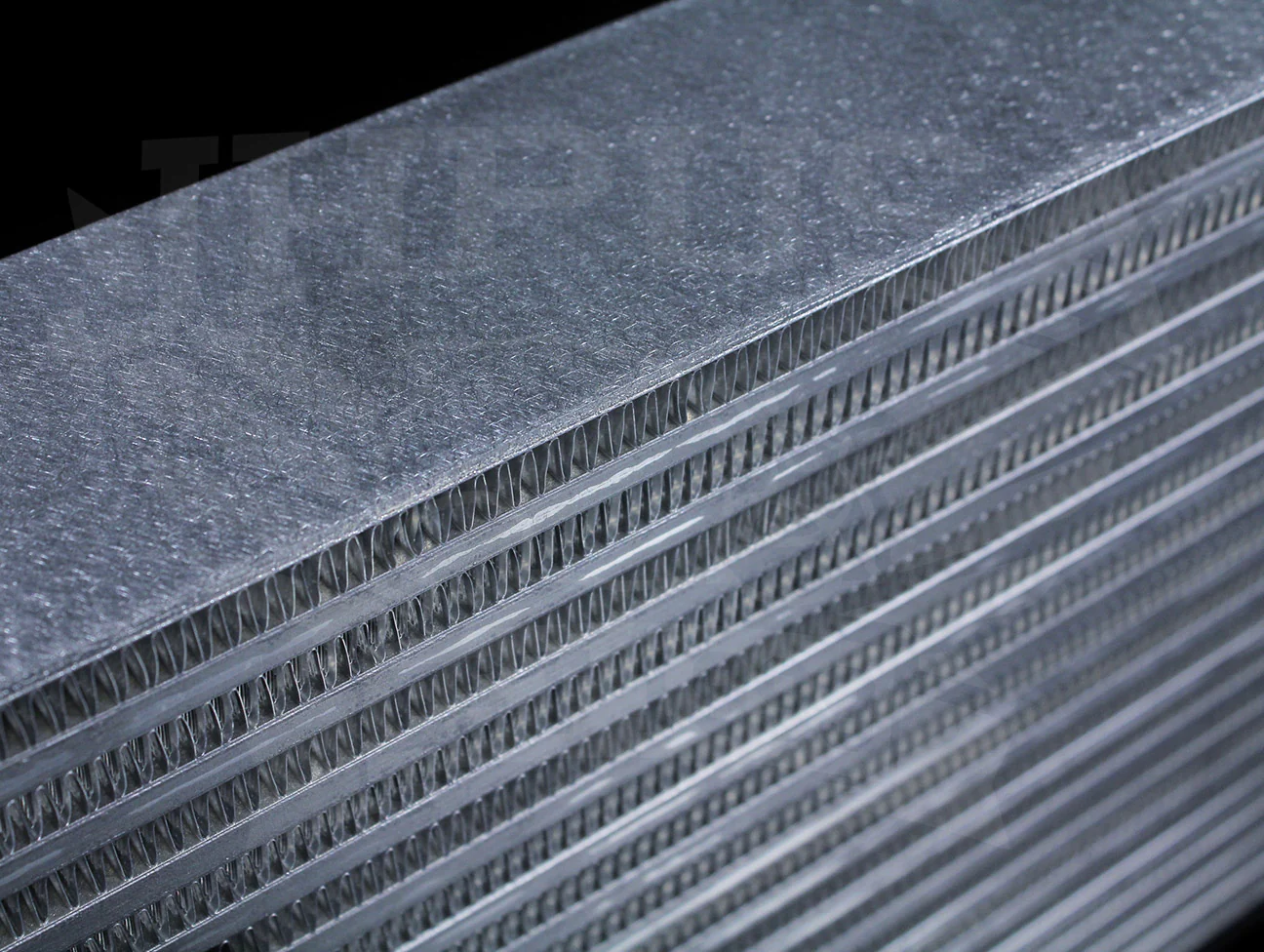

The SpeedFactory DBD-850Dual Backdoor Intercooler is built with a high quality 3" thick SpeedFactory Air-to-Air Intercooler Core, featuring bar and plate construction with a very specific staggered fin combination engineered to achieve maximum cooling efficiency while minimizing pressure drop. Our custom engineered end tanks are carefully hand-formed in house from H-3 5052 aluminum and are fully TIG welded. This 600-850HP rated,smooth-flowing intercooler was designed specifically to fit tidily between the front framerails on street/racing applications, and requires minimum charge pipe lengths.

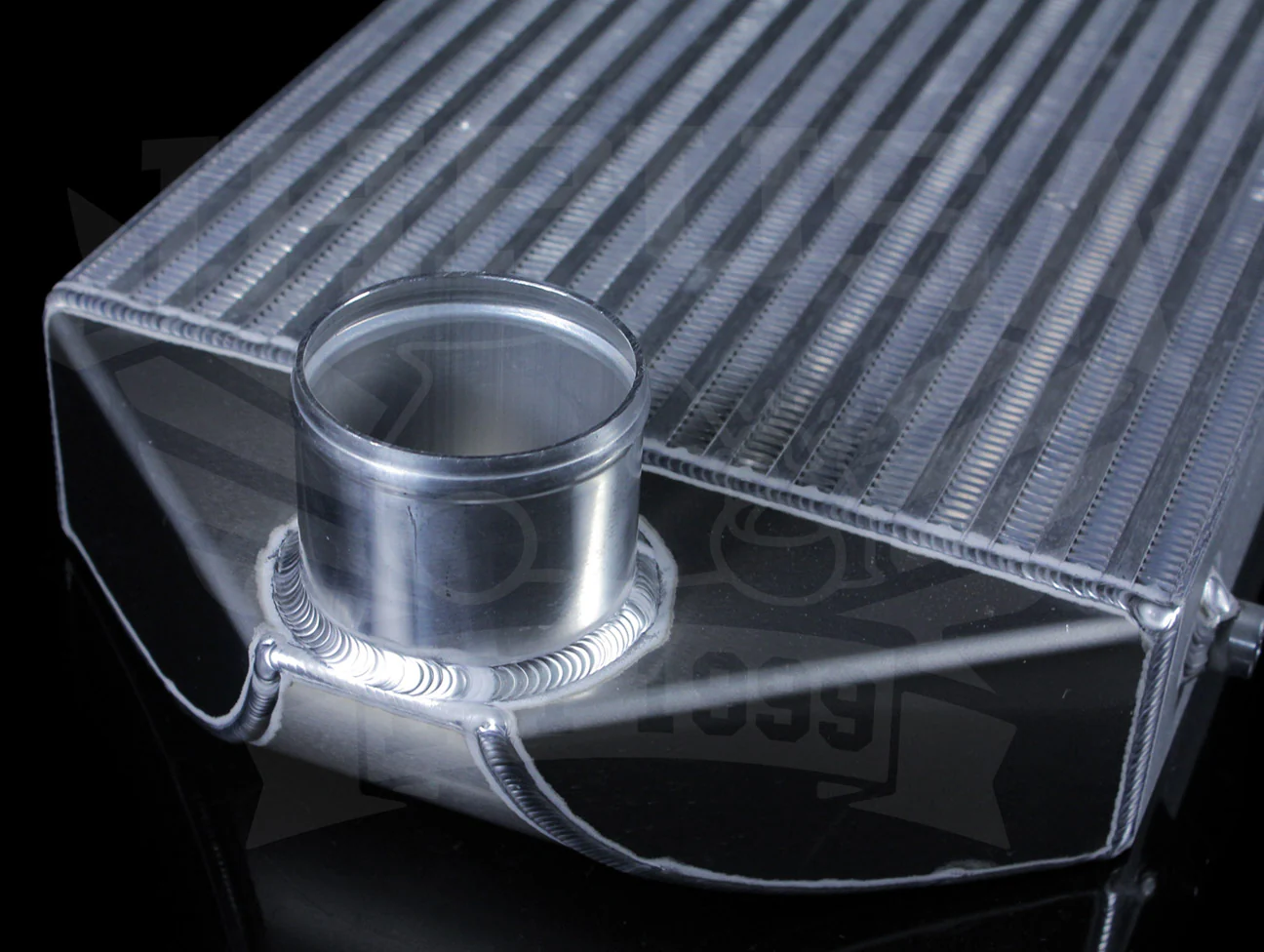

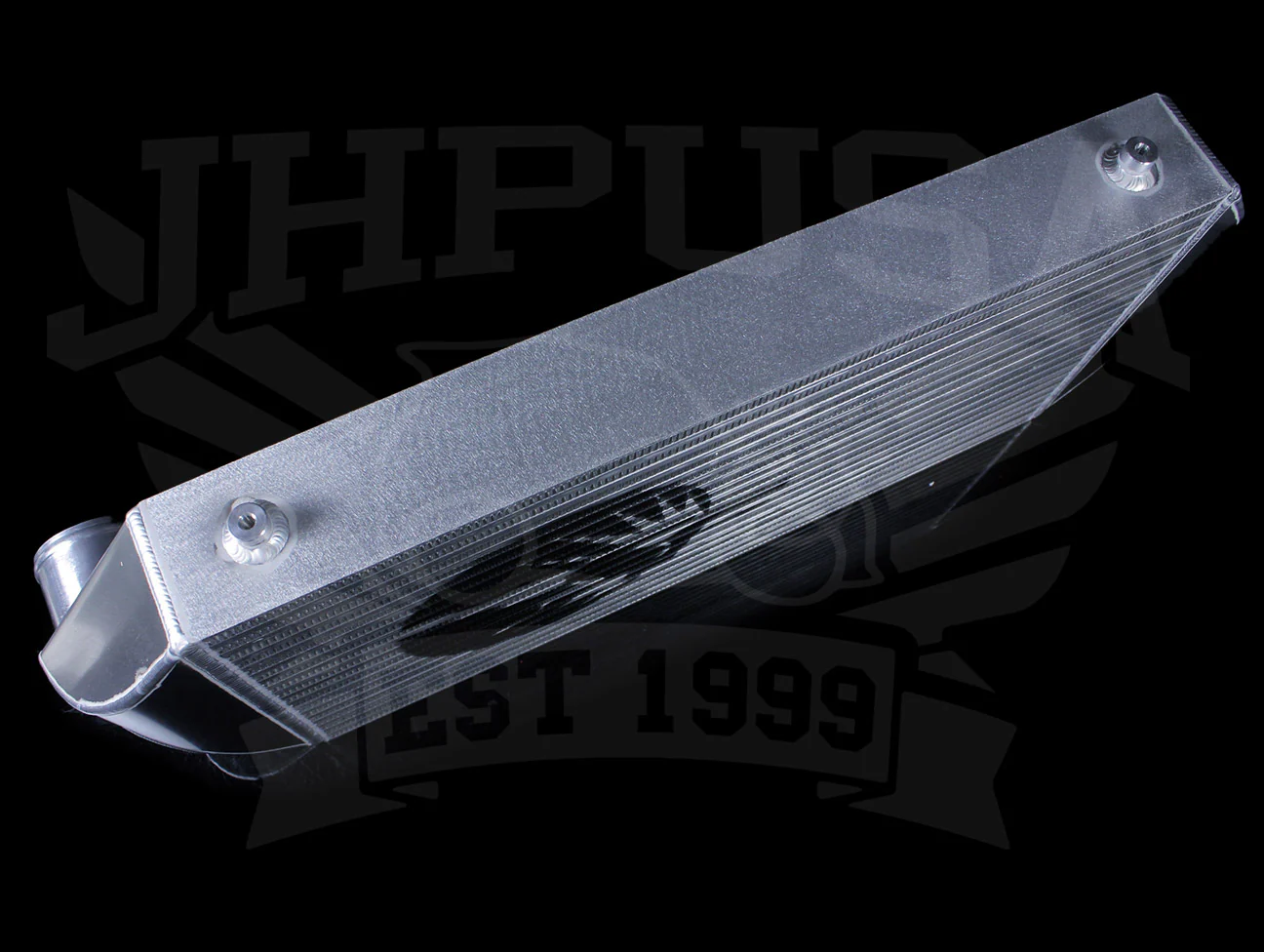

This intercooler comes standard with 3" inlet / 3" outlet bead rolled tube ends. Vibrant Performance Vanjen clamps are also available upon request for faster, more secure charge pipe connections. All of our intercoolers ship complete with the SpeedFactory logo stenciled on the face of the core and have M8x1.25mm aluminum mounting bungs already attached for easy installation. Deliver significantly cooler, denser air to your engine with a performance proven SpeedFactory Racing Intercooler.
Features
- Rated for 600HP-850HP
- Core size is 24"x12"x3"
- Overall size is 32.5" width x 12" tall x 3" thick
- Will fit most Honda/Acura chassis with modification
- This intercooler can be made into a combo with SpeedFactory Tucked Radiators
- Unparalleled Craftsmanship and race proven performance
The SpeedFactory DBD-850Dual Backdoor Intercooler is built with a high quality 3" thick SpeedFactory Air-to-Air Intercooler Core, featuring bar and plate construction with a very specific staggered fin combination engineered to achieve maximum cooling efficiency while minimizing pressure drop. Our custom engineered end tanks are carefully hand-formed in house from H-3 5052 aluminum and are fully TIG welded. This 600-850HP rated,smooth-flowing intercooler was designed specifically to fit tidily between the front framerails on street/racing applications, and requires minimum charge pipe lengths.
This intercooler comes standard with 3" inlet / 3" outlet bead rolled tube ends. Vibrant Performance Vanjen clamps are also available upon request for faster, more secure charge pipe connections. All of our intercoolers ship complete with the SpeedFactory logo stenciled on the face of the core and have M8x1.25mm aluminum mounting bungs already attached for easy installation. Deliver significantly cooler, denser air to your engine with a performance proven SpeedFactory Racing Intercooler.
Features
- Rated for 600HP-850HP
- Core size is 24"x12"x3"
- Overall size is 32.5" width x 12" tall x 3" thick
- Will fit most Honda/Acura chassis with modification
- This intercooler can be made into a combo with SpeedFactory Tucked Radiators
- Unparalleled Craftsmanship and race proven performance
Description
The SpeedFactory DBD-850Dual Backdoor Intercooler is built with a high quality 3" thick SpeedFactory Air-to-Air Intercooler Core, featuring bar and plate construction with a very specific staggered fin combination engineered to achieve maximum cooling efficiency while minimizing pressure drop. Our custom engineered end tanks are carefully hand-formed in house from H-3 5052 aluminum and are fully TIG welded. This 600-850HP rated,smooth-flowing intercooler was designed specifically to fit tidily between the front framerails on street/racing applications, and requires minimum charge pipe lengths.
This intercooler comes standard with 3" inlet / 3" outlet bead rolled tube ends. Vibrant Performance Vanjen clamps are also available upon request for faster, more secure charge pipe connections. All of our intercoolers ship complete with the SpeedFactory logo stenciled on the face of the core and have M8x1.25mm aluminum mounting bungs already attached for easy installation. Deliver significantly cooler, denser air to your engine with a performance proven SpeedFactory Racing Intercooler.
Features
- Rated for 600HP-850HP
- Core size is 24"x12"x3"
- Overall size is 32.5" width x 12" tall x 3" thick
- Will fit most Honda/Acura chassis with modification
- This intercooler can be made into a combo with SpeedFactory Tucked Radiators
- Unparalleled Craftsmanship and race proven performance
