Whether you drag, oval or road race, Moroso has the oil pan your engine needs specially designed for front or rear wheel drive sport compacts. Each pan is fully fabricated from aluminum or steel, with race proven features that control oil for maximum power. The key is to keep the crankshaft free of excess oil which allows the engine to spin freely and achieve its full power potential.

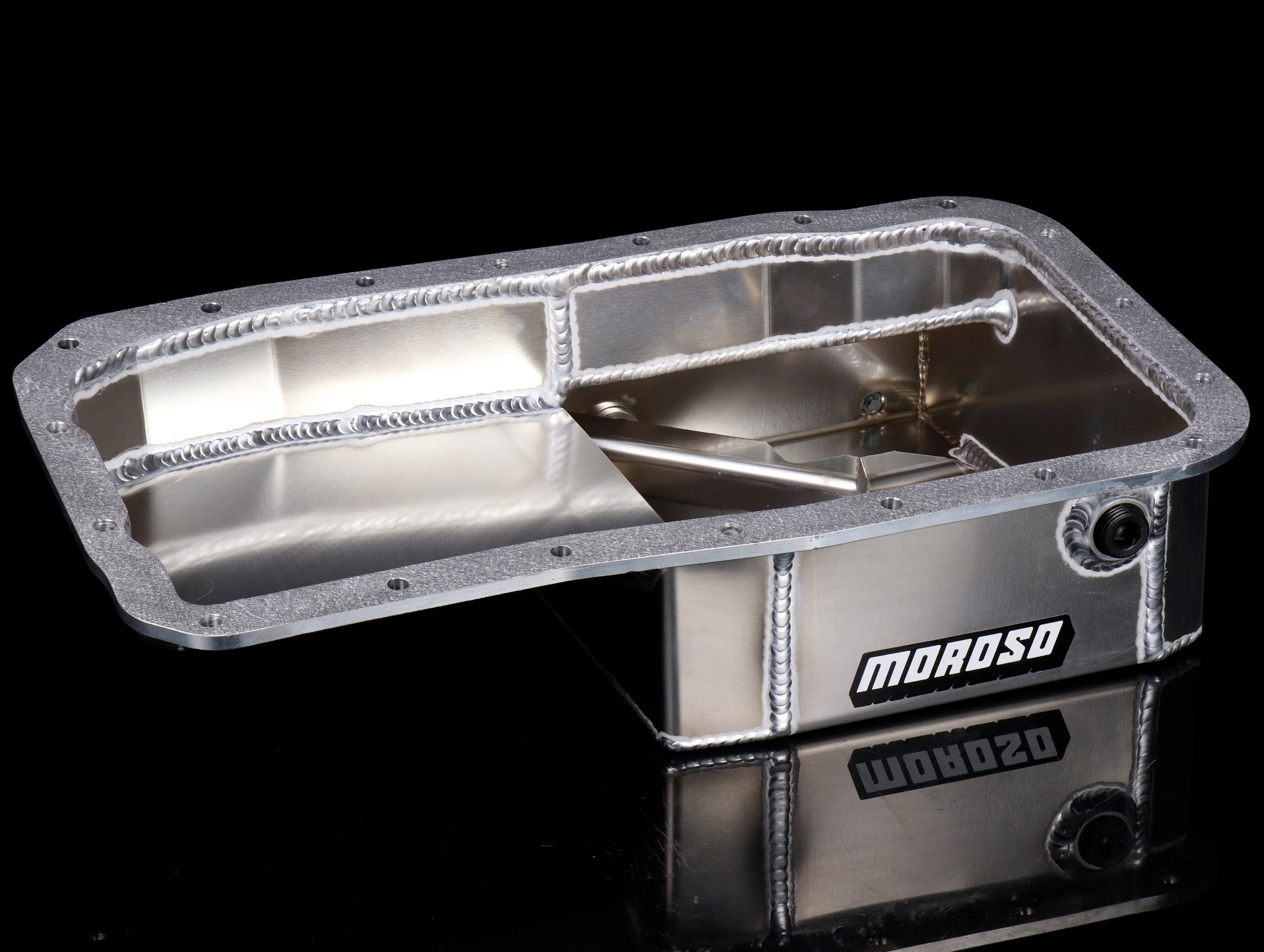

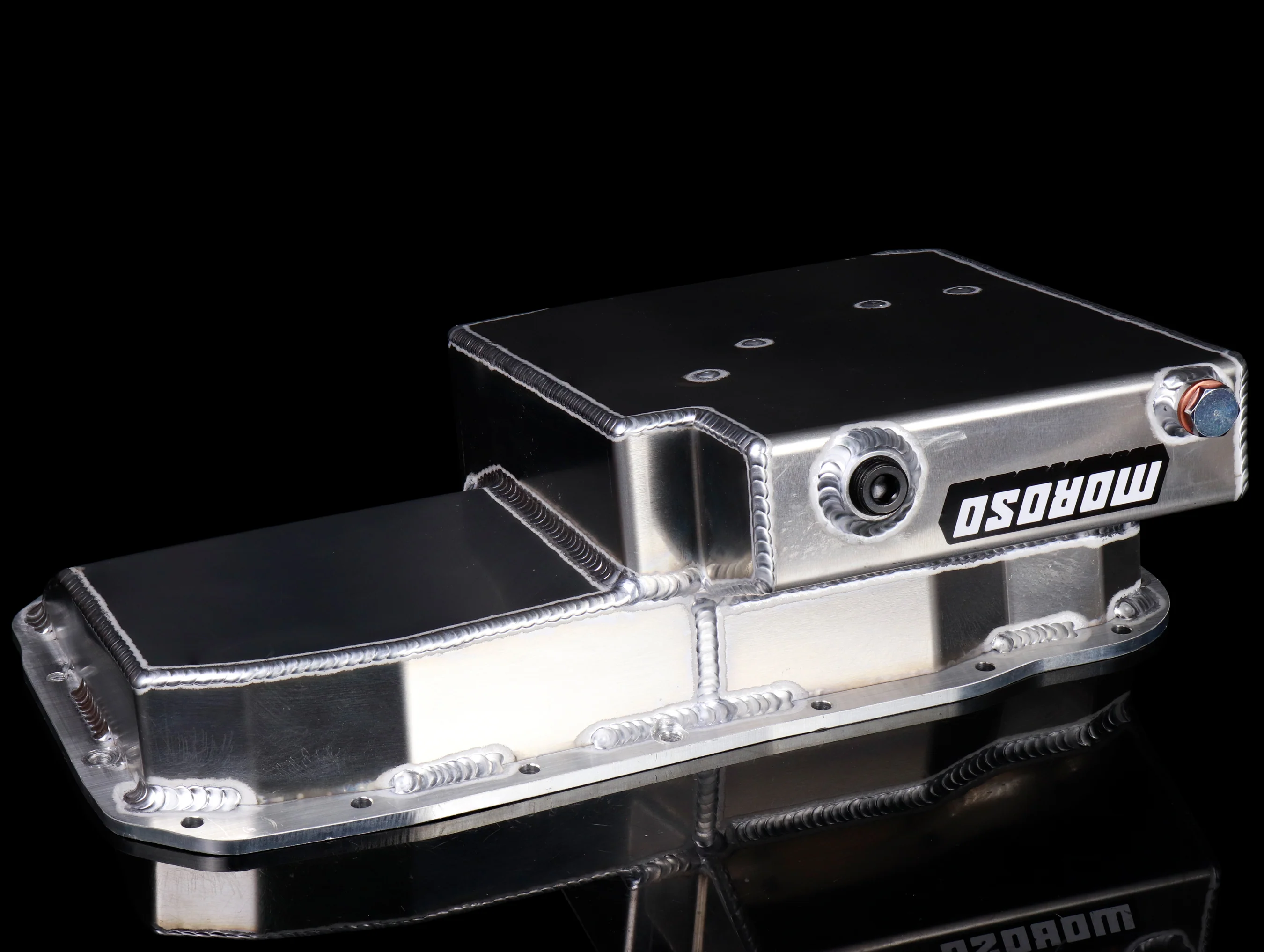

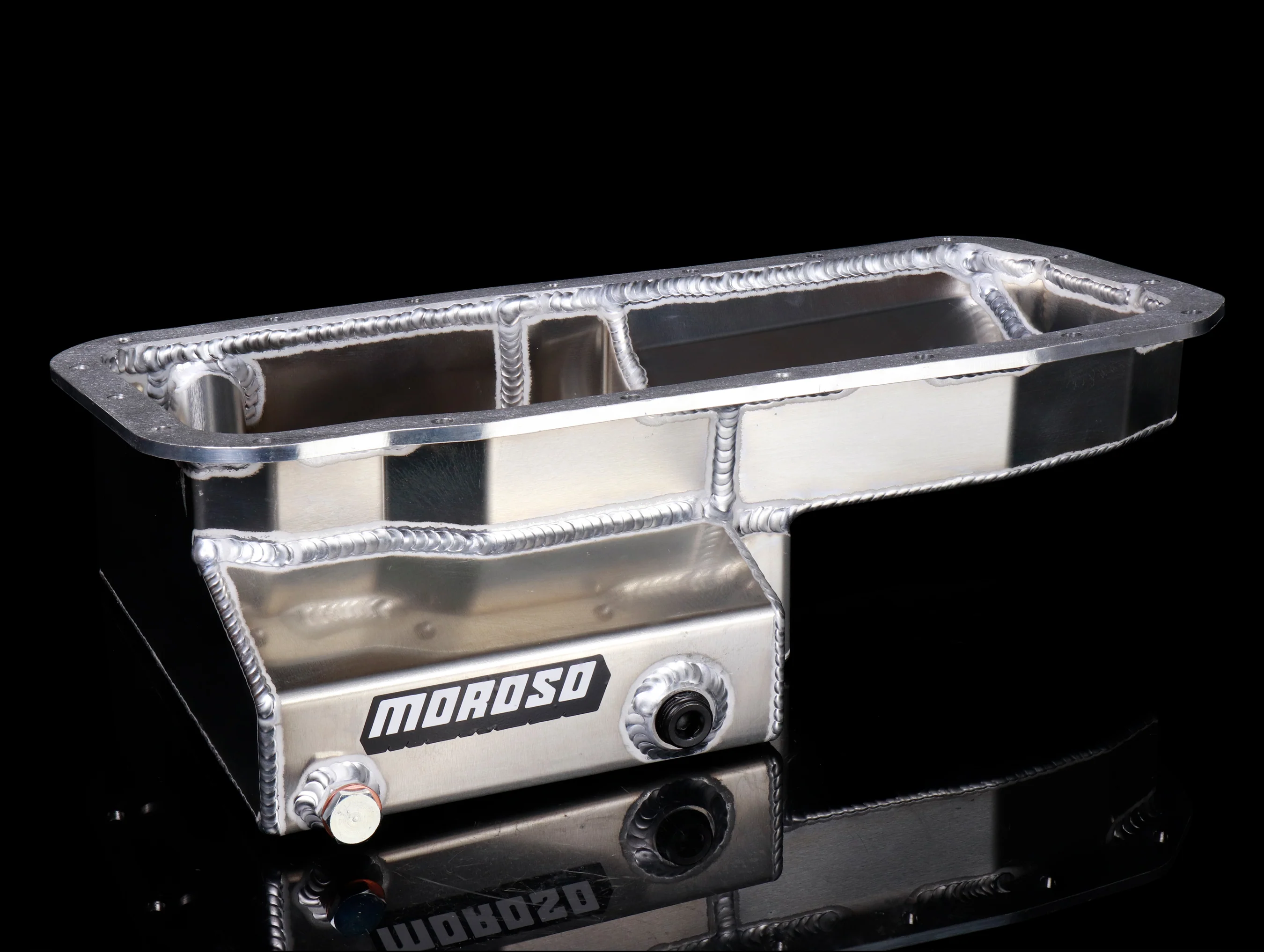

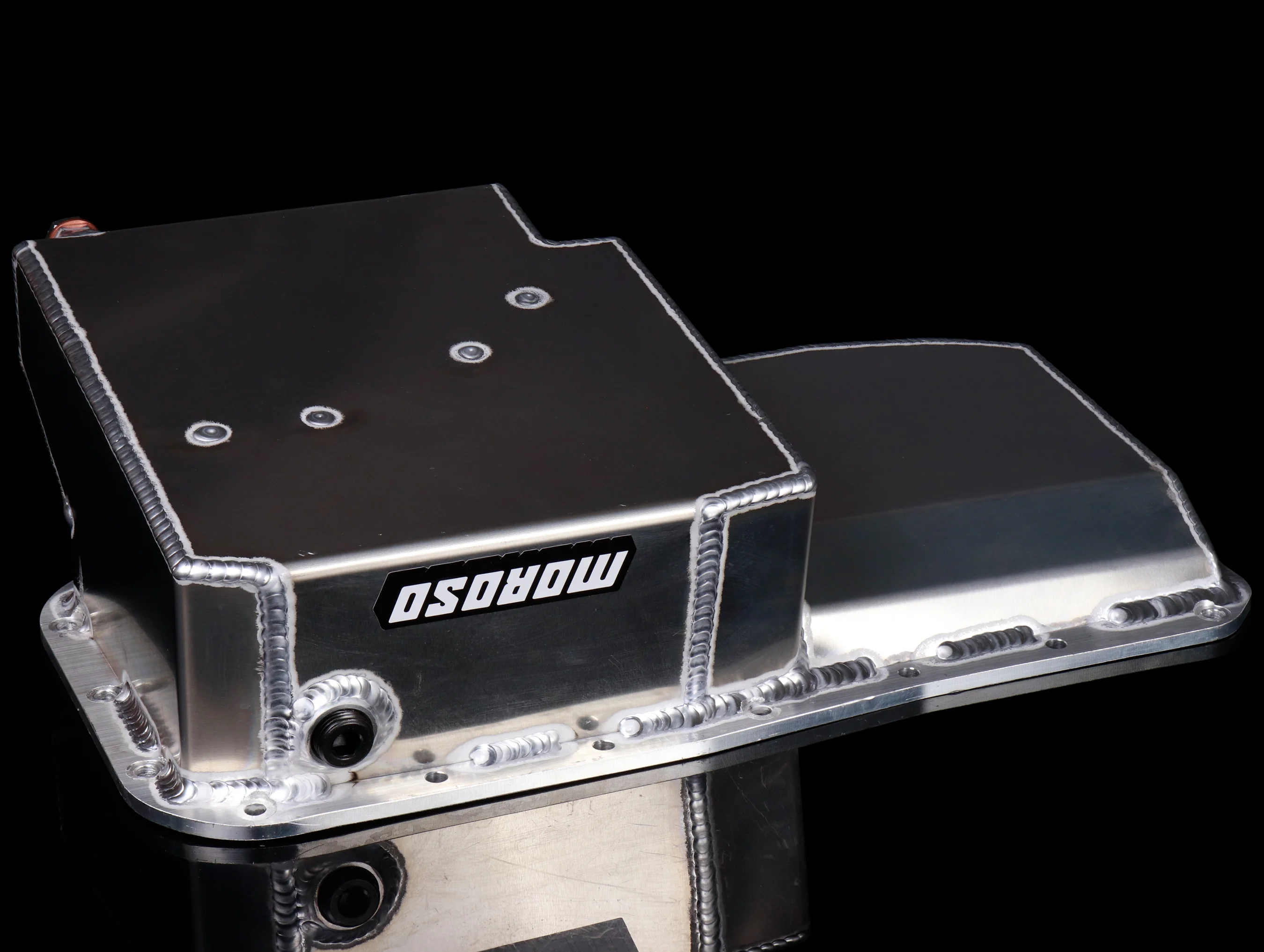

Aluminum, Kicked-out Sump, 5 Quart Capacity, 5-5/8" Deep

Engine Application: Acura VTEC, Non-VTEC and Honda 1.6L B16A3

• Integrated trap door baffling for improved oil control
• Fully fabricated aluminum construction

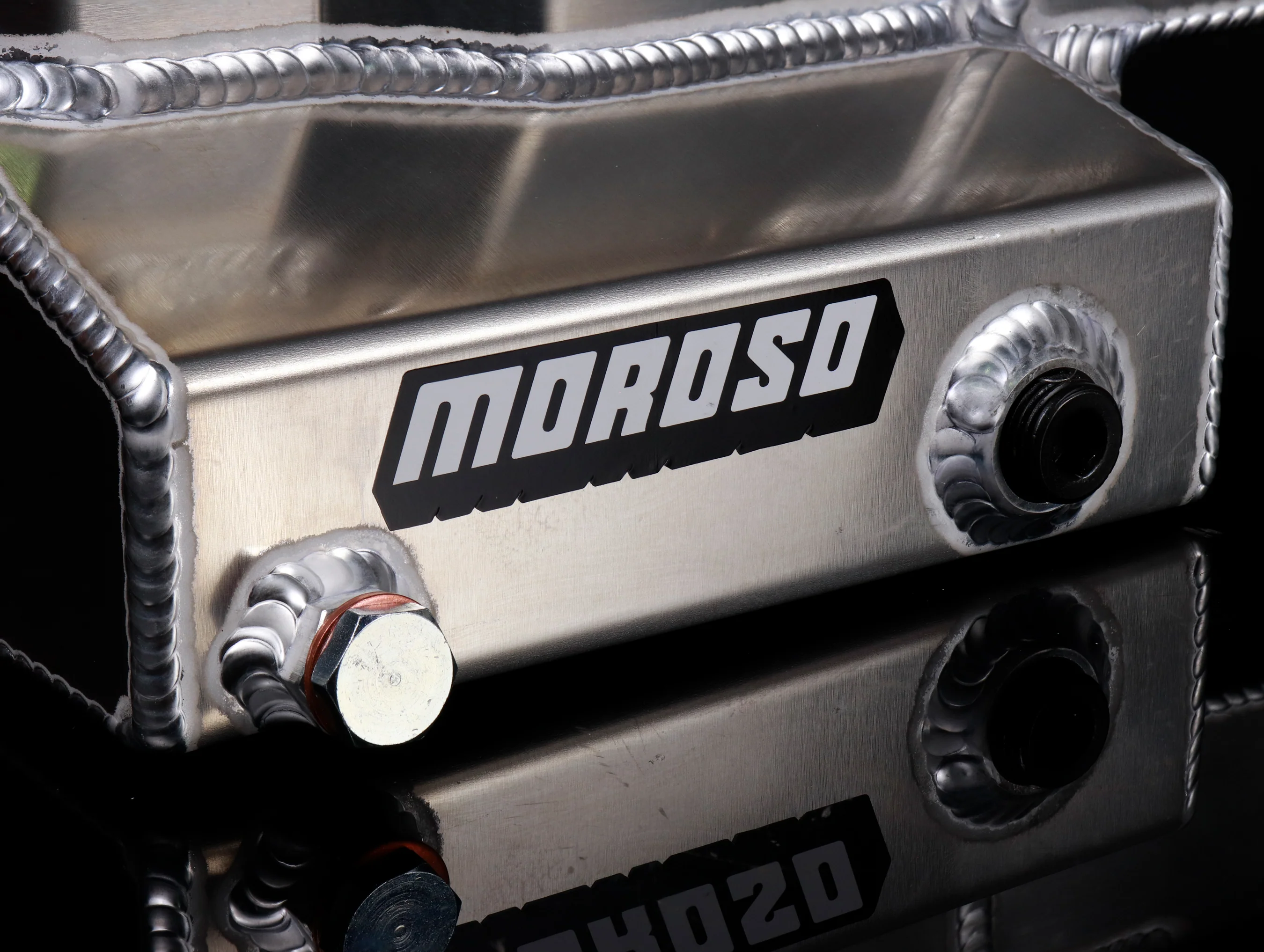

• 1/2" N.P.T. turbo/supercharger drain back and 1/2" N.P.T. temperature sender provisions
• Includes hardware kit with hex-drive studs and serrated-face flange nuts
• Works with O.E.M. exhaust manifold and most aftermarket exhaust/header combinations
• Install Instructions

PART NO.	RECOMMENDED PICKUPS
24010	Fits: VTEC Engines
24011	Fits: Non-VTEC Engines and 1.6 Liter VTEC



PART NO.	AVAILABLE OPTIONS
38366	Oil Pan Stud Kit
93200	Oil Pan Gasket, One Piece Design, Acura/Honda B Series
22206	B Series, Oil Pump
