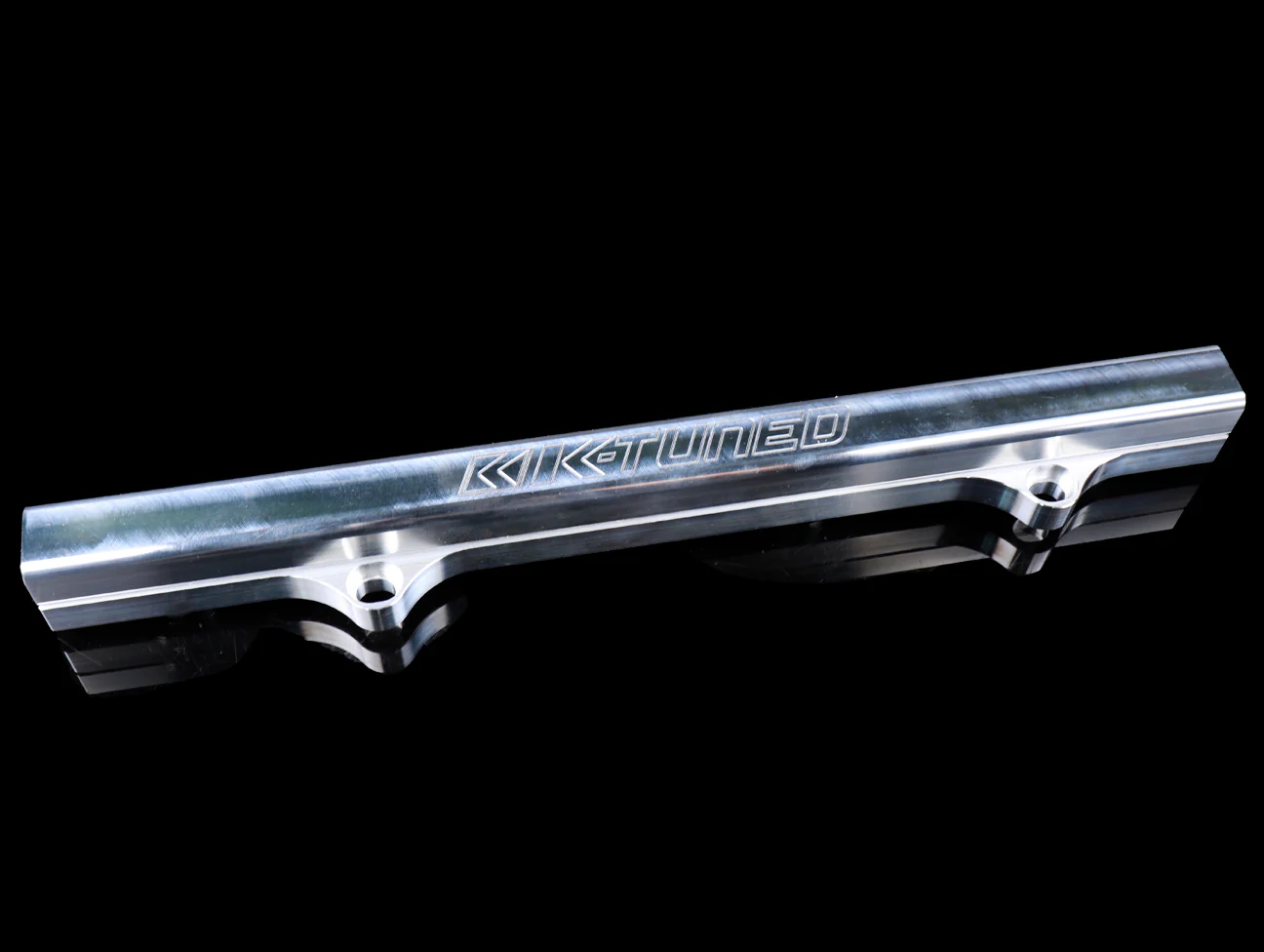

The K-Tuned multi-port fuel rail is by far the best looking rail on the market. Using positive customer feedback and demand K-Tuned has added a center port to this popular K-series fuel rail. The rail is designed with this third port to be used as an optional 6AN or 8AN center port fitting but can also be used as the fuel feed on stock or all motor engine set-ups to hide or tuck the line for the very popular stealth look. A common high HP setup will use a dual-feed system on both ends of the rail, with a center return.

K-Tuned has designed an optional one piece fitting that uses the existing center port on this fuel rail just below the K-Tuned logo. The resulting look is very clean, compact and is very easy to install. The fitting is soft mounted on the underside of the rail with o-rings, to eliminate the possibility of dangerous fuel leaks caused by the vibration of the engine unlike other rails where the gauge is hard mounted.

This rail will match with factory-native K-series car fuel feed hard line as well as 02-15 Civic Si / RSX / TSX as well as K-swap Applications.

Key Features

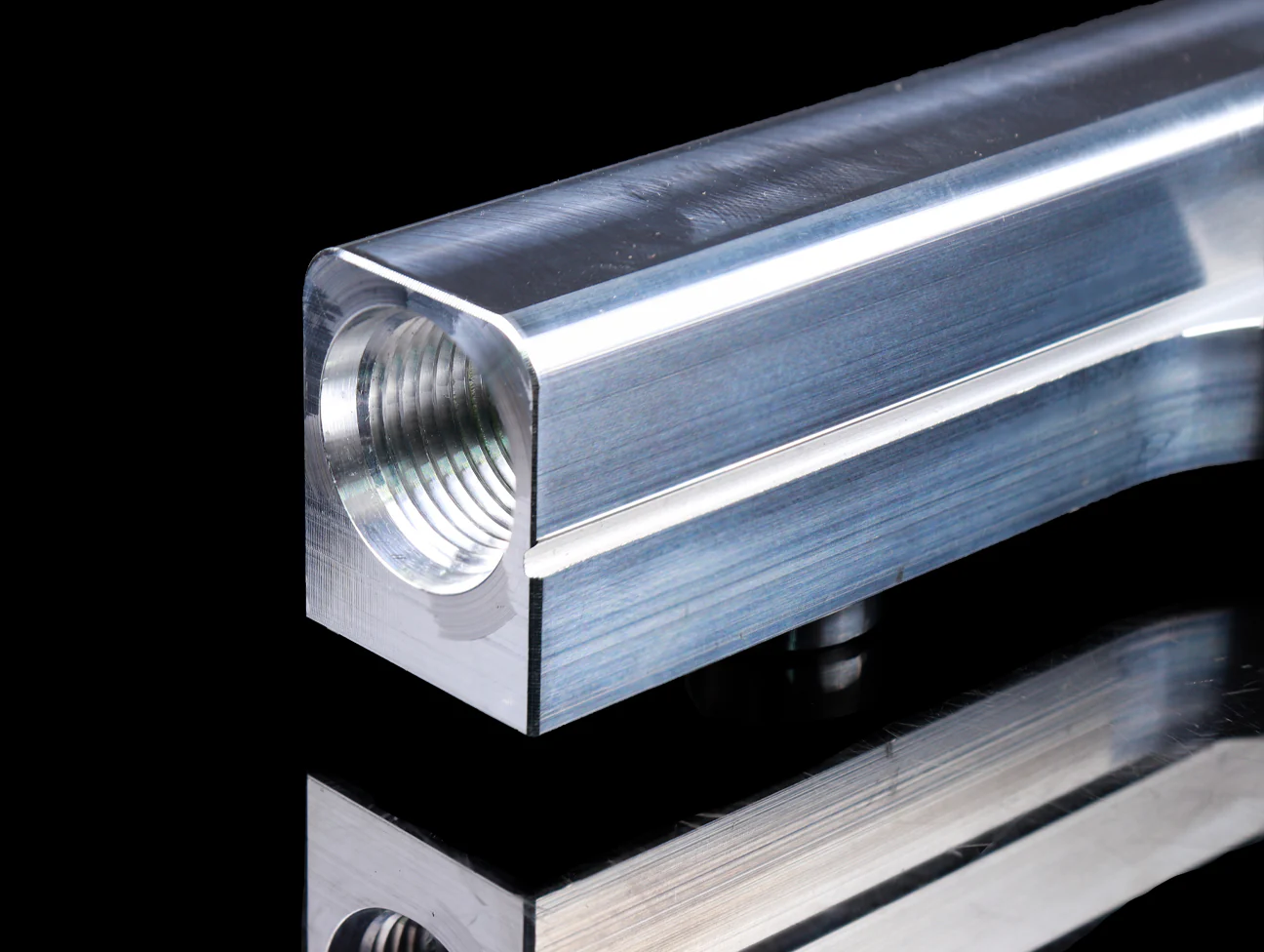

• CNC machined 6061 billet aluminum
• Fully anodized in various colors
• 17.9mm (0.70”) bore diameter
• 8AN inlet/outlet ports
• Center Port Plug + 8AN Plug + 6AN Fitting + EFI Fitting included
• Supports 1000+ whp
• Compatible with stock and aftermarket injectors

Options

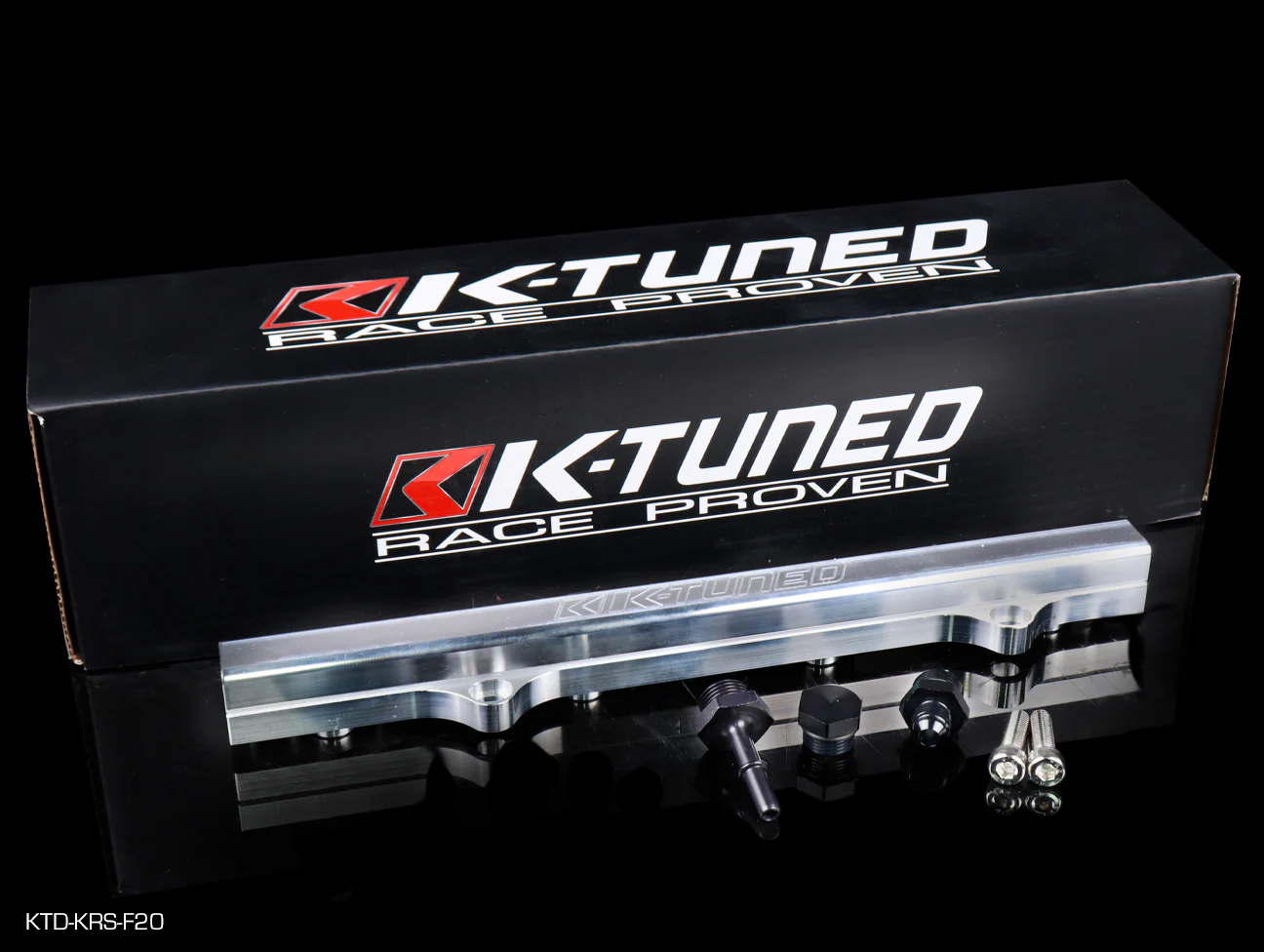

• Basic - Fuel rail + Center Port Plug + 8AN Plug + 6AN Fitting + EFI Fitting

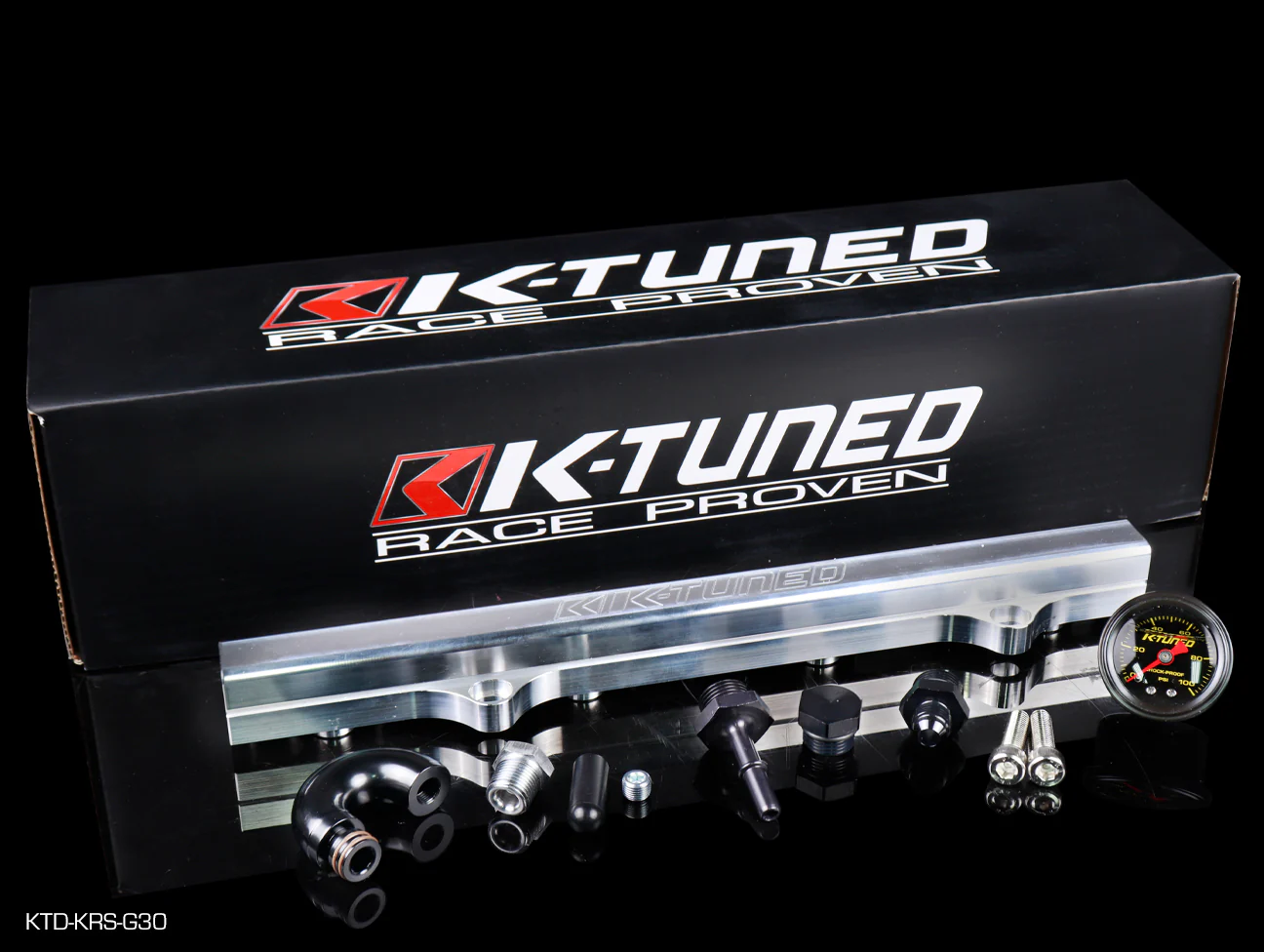

• Combo - Everything Above + IAA Delete Kit + Center Mounted Fuel Gauge

Vehicle applications: 02-05 Civic Si, 06-15 Civic Si, 02-06 RSX (all), 04-08 TSX, K-Series (K-Swap)
