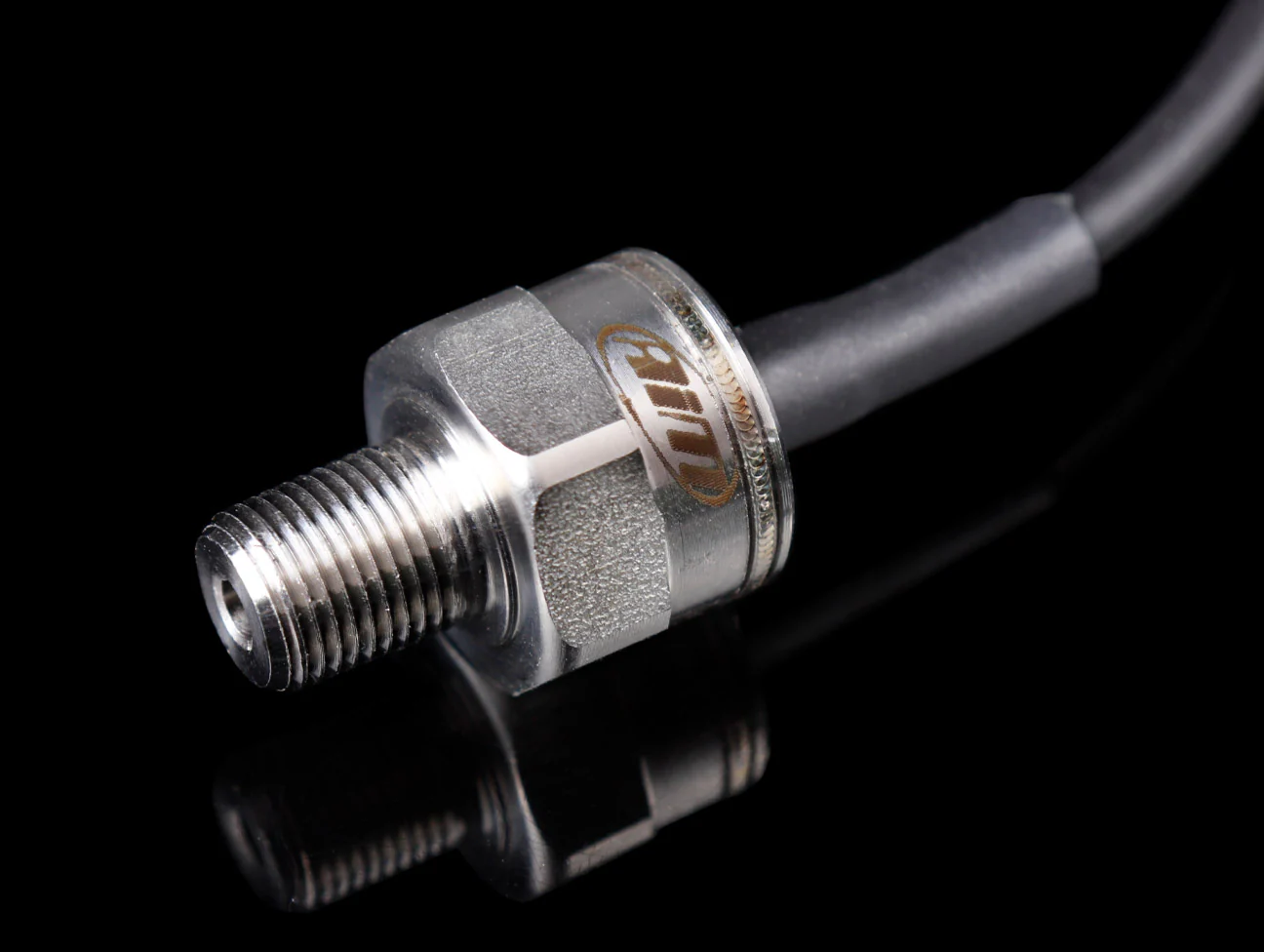

AiM Oil/Fuel Pressure Sensor - 0-150psi / 1/8 NPT
AiM 0-150 PSI pressure sensor is suitable for oli and fuel pressure reading, being able to read pressures up to 150 PSI.
Sensor specs
- Supply: 8-16 V
- Accuracy: < +/- 0.5% FS (CLNH - combined non-linearity and hysteresis)
- Characterization: 500 mV/ 0 PSI 4500 mV/ 150 PSI
- Consumption: < 10 mA
- Temperature working range: from -20 degrees C to 135 degrees C
- Sealing: IP66
- Housing: 316 stainless steel
- Weight: 30 g
- Cable length: 400 mm
- Thread: 1/8 NPT
AiM 0-150 PSI pressure sensor is suitable for oli and fuel pressure reading, being able to read pressures up to 150 PSI.
Sensor specs
- Supply: 8-16 V
- Accuracy: < +/- 0.5% FS (CLNH - combined non-linearity and hysteresis)
- Characterization: 500 mV/ 0 PSI 4500 mV/ 150 PSI
- Consumption: < 10 mA
- Temperature working range: from -20 degrees C to 135 degrees C
- Sealing: IP66
- Housing: 316 stainless steel
- Weight: 30 g
- Cable length: 400 mm
- Thread: 1/8 NPT
$165.00
AiM Oil/Fuel Pressure Sensor - 0-150psi / 1/8 NPT—
$165.00
Description
AiM 0-150 PSI pressure sensor is suitable for oli and fuel pressure reading, being able to read pressures up to 150 PSI.
Sensor specs
- Supply: 8-16 V
- Accuracy: < +/- 0.5% FS (CLNH - combined non-linearity and hysteresis)
- Characterization: 500 mV/ 0 PSI 4500 mV/ 150 PSI
- Consumption: < 10 mA
- Temperature working range: from -20 degrees C to 135 degrees C
- Sealing: IP66
- Housing: 316 stainless steel
- Weight: 30 g
- Cable length: 400 mm
- Thread: 1/8 NPT
